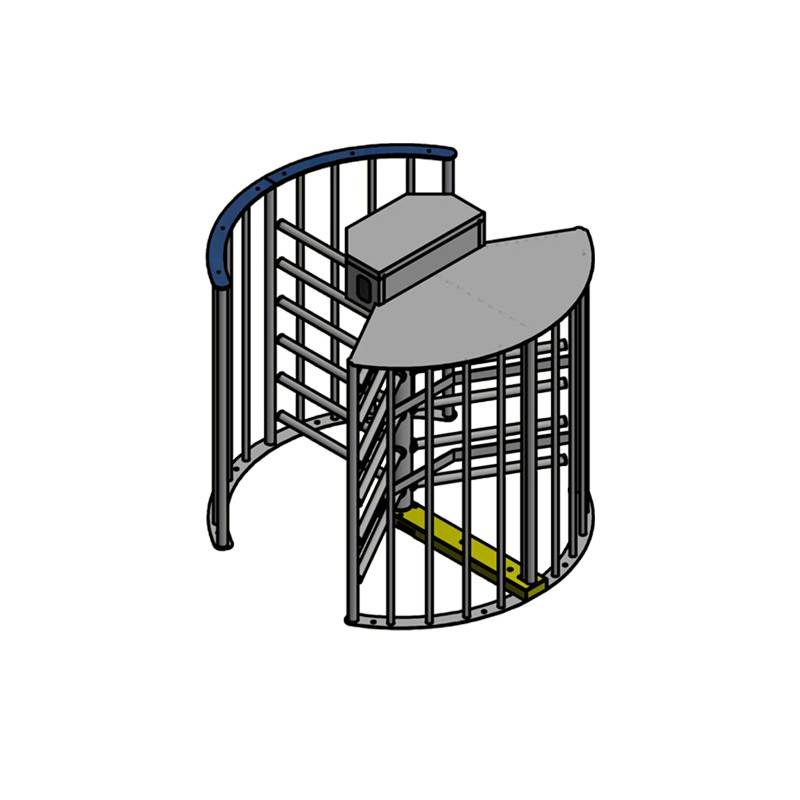

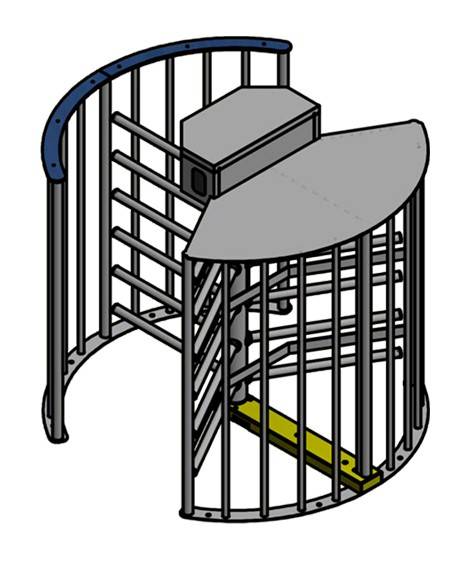

TM-PASS iAccess Turnstile
iAccess TM-PASS is a turnstile revolving at half height with a single passage that creates a non-overriding barrier designed to allow the passage of only one person at a time, particularly suitable for access control with standard flows and used in all situations where a rigid and peripheral control is required.
It has a sturdy structure totally in 304 stainless steel and a 3 sector stainless steel rotor connected to a movement suitably designed to withstand stress very high mechanics.
It can be easily interfaced with any iAccess access control system to allow passage only to authorized persons or via a specific remote command.
Suitable for:
- Small and medium-sized events
- City fairs and festivals
- Large offices and entities
In an emergency, it is deactivated allowing passage in both directions.
-
Data sheet
Tipology Full-height motorized barrier with single gate Power Supply 220 V 220VAC / 24VDC Operating environment International events, major shipping locations and government agencies Weight 250 kg Materiale STAINLESS STEEL 304 with variable thickness from 1.5 mm to 2.0 mm. Dimensions Tripod arms length: 600 mm. Arm diameter: from 32 mm to 38 mm. Sbocco dei passaggi Two-way electric Rotore centrale Central rotor made entirely of 304 stainless steel Semafori LED traffic lights with green arrow and red cross Passaggio cavi Output of the connection cables from the base Fissaggio Fixing to the ground by means of expansion screws Tensione elettromagneti 24 Vcc Temperatura di funzionamento From -20C° to +70C° Velocità di transito 40-70 people for minute Power 30W Degree of protection IP65 Opening Motorized with settable time
