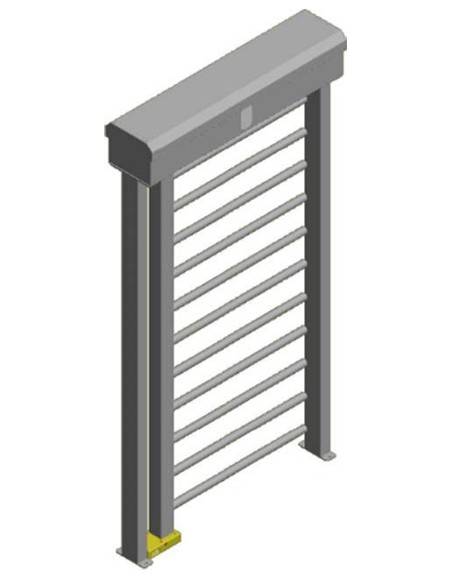

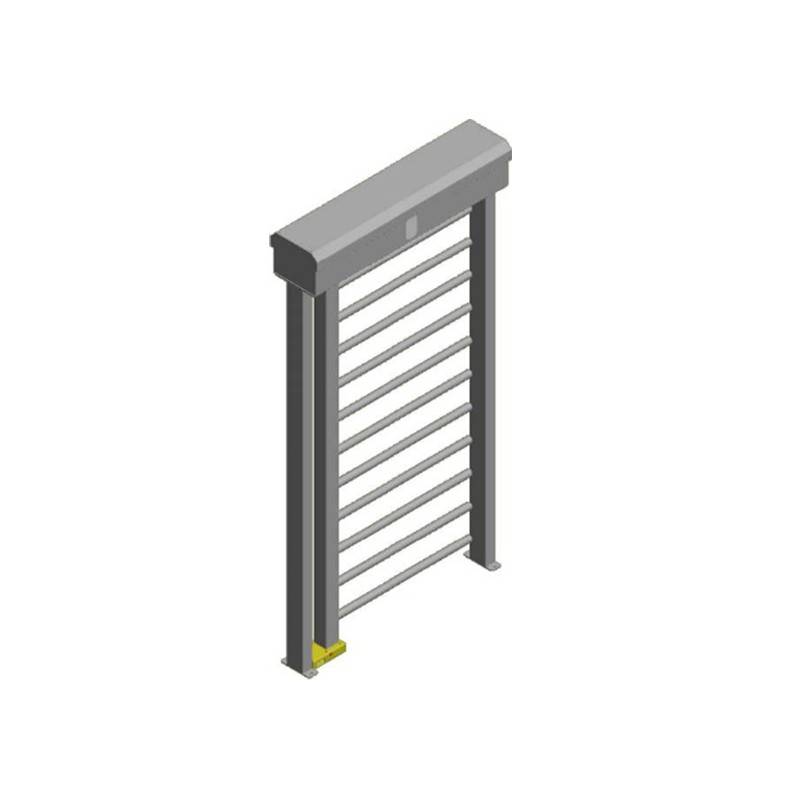

iAccess HM-PASS steel barrier
iAccess HM-PASS completely made of AISI 304 stainless steel, is a full-height motorized barrier with a single passage that creates a non-overriding barrier designed to allow the passage of people and materials, particularly suitable for controlling access with standard flows and used in all situations where it is necessary a rigid and peripheral control.
It has an extremely robust structure made entirely of AISI 304 stainless steel with 3 sectors connected to a movement suitably designed to withstand very high mechanical stress.
It can be easily interfaced with any iAccess access control system to allow passage only to authorized persons or via a specific remote command.
Suitable for:
- Places with large and small crowds
- Events and meeting places
- Museums and places of worship
- Bodies and Associations
-
Data sheet
Tipology Full-height motorized barrier with single gate Power Supply 220 V Power supply: 220V 50Hz, single phase Operating environment Places with large and small crowds, museums and institutions Weight 250 kg Materiale INOX 304 Sbocco dei passaggi Two-way electric Rotore centrale Central rotor made entirely of 304 stainless steel Semafori LED traffic lights with green arrow and red cross Passaggio cavi Through the turnstile risers Fissaggio Fixing to the floor from the base using expansion bolts Tensione elettromagneti 24 Vcc Temperatura di funzionamento From -20C° to +70C° Velocità di transito 40-70 people for minute Power 70W Degree of protection IP65 Opening Motorized with settable time
