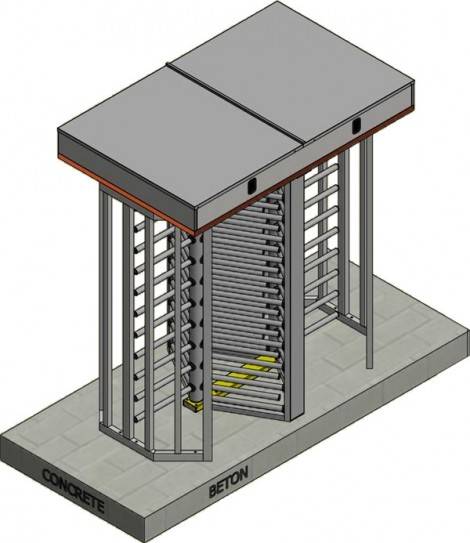

iAccess H2T-Pass IX is a double-passage full-height revolving turnstile made entirely of steel.
It is characterized by a non-overriding barrier created to allow the passage of only one person at a time, particularly suitable for places where rigid and peripheral control is required.
Made of AISI 304 stainless steel, its extremely robust structure is connected to a movement suitably designed to withstand very high mechanical stresses.
iAccess H2T-Pass IX is designed and thought to be useful in places that require strict control to maintain the security of the environment in which it is located, such as:
If interfaced with the access control systems of the iAccess brand, its effectiveness in allowing passage in total security increases.
Tipology | Full height DOUBLE vertical turnstile |
Power Supply 220 V | Power supply: 220V 50Hz, single phase |
Operating environment | International events, major shipping locations and government agencies |
Weight | 700 kg |
Materiale | INOX 304 |
Sbocco dei passaggi | Two-way electric |
Rotore centrale | Central rotor made entirely of 304 stainless steel |
Semafori | LED traffic lights with green arrow and red cross |
Passaggio cavi | Cable passage through the turnstile risers |
Fissaggio | Fixing to the floor from the base using expansion bolts |
Tensione elettromagneti | 24 Vcc |
Temperatura di funzionamento | From -20C° to +70C° |
Velocità di transito | 40-70 people for minute |
Power | 140W |
Degree of protection | IP55 - IP65 with optional cover |
