Turnstile iAccess HT-PASS-IX

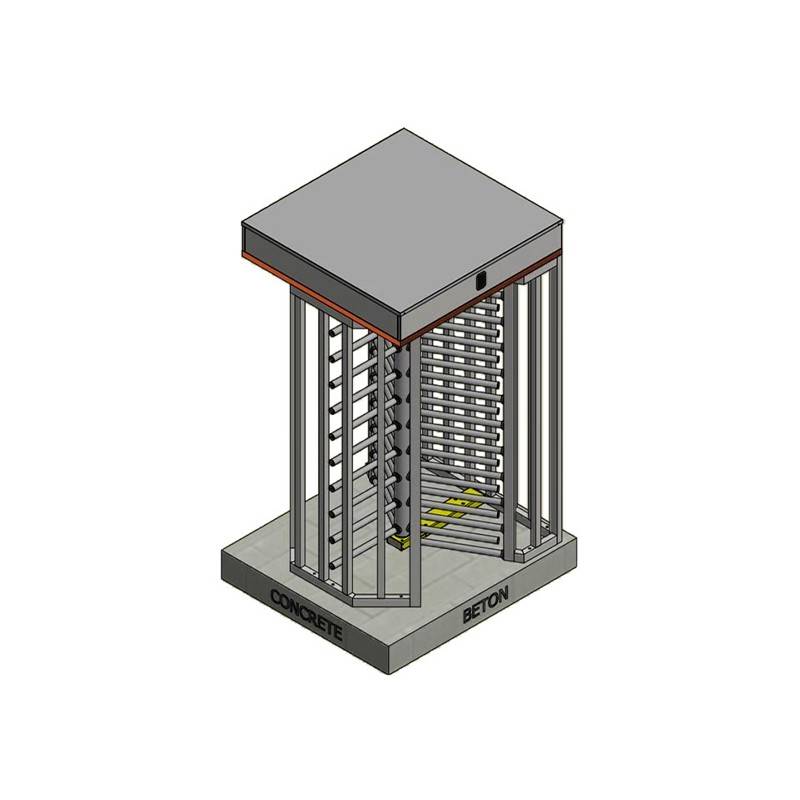

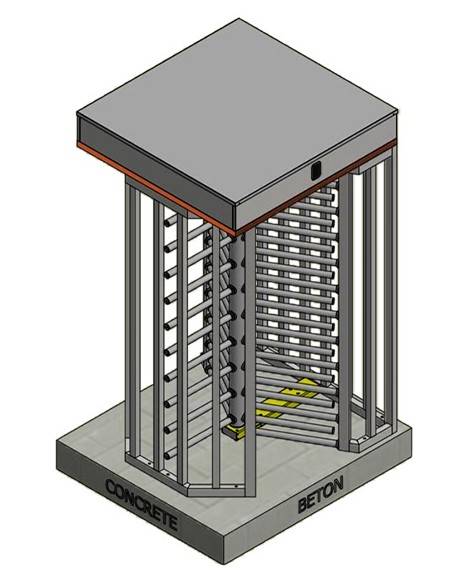

iAccess HT-Pass IX is a full-height single gate revolving turnstile made entirely of steel.
It represents a non-passable barrier created to allow the passage of only one person at a time, particularly suitable for outdoor environments.
Equipped with a canopy of the same material (INOX 304), iAccess HT-Pass IX is of great help in controlling accesses with standard flows and can be used in all situations where tight control is required, such as:
- Stadiums, Autodromes, Concerts
- Airports, Boarding, Railway and Underground Stations
- Government offices, courts, prisons, embassies
It has an extremely robust structure made entirely of 3-section AISI 304 stainless steel connected to a movement suitably designed to withstand very high mechanical stresses.
If interfaced with biometric access control systems or with RFID badges of the same iAccess brand, its effectiveness in allowing passage only to authorized persons or via a specific remote command increases dramatically.
-
Data sheet
Tipology Single gate full-height revolving turnstile Power Supply 220 V Power supply: 220V 50Hz, single phase Operating environment Major events, embarkation locations, government agencies Weight 450 kg Materiale INOX 304 Rotore centrale Central rotor made entirely of 304 stainless steel Semafori LED traffic lights with green arrow and red cross Passaggio cavi Cable passage through the turnstile risers Fissaggio Fixing to the floor from the base using expansion bolts Temperatura di funzionamento From -20C° to +70C°
