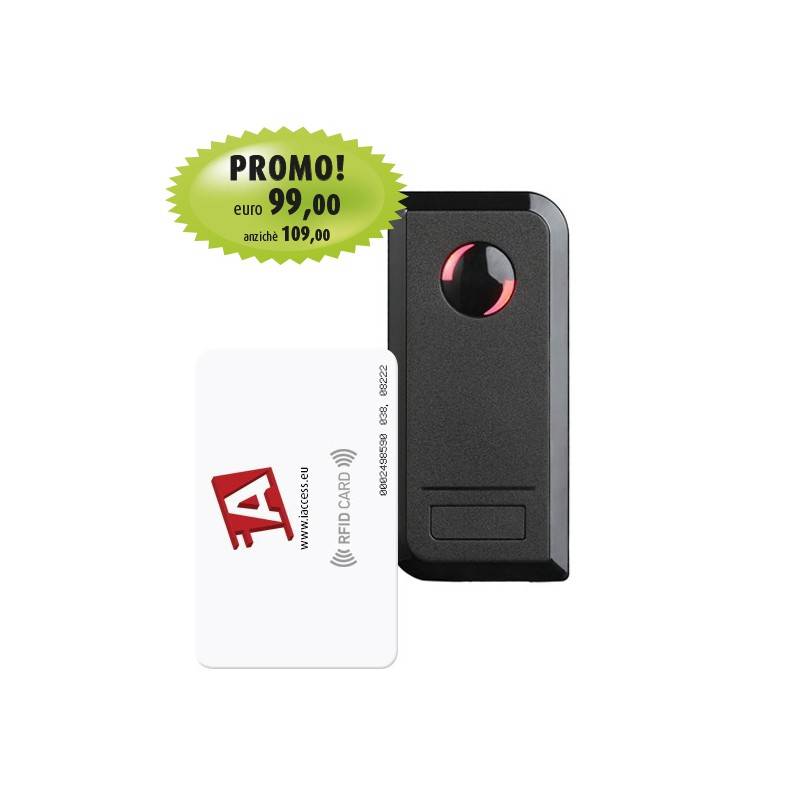

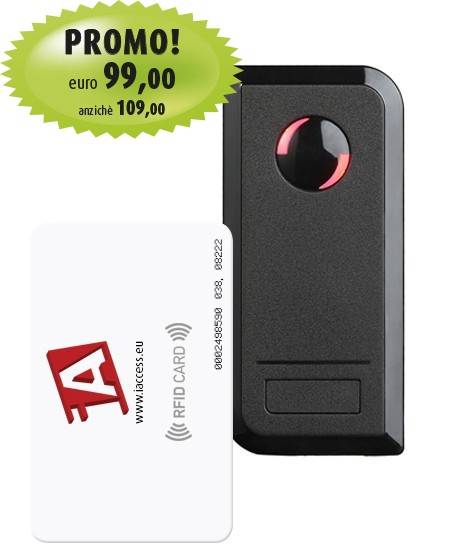

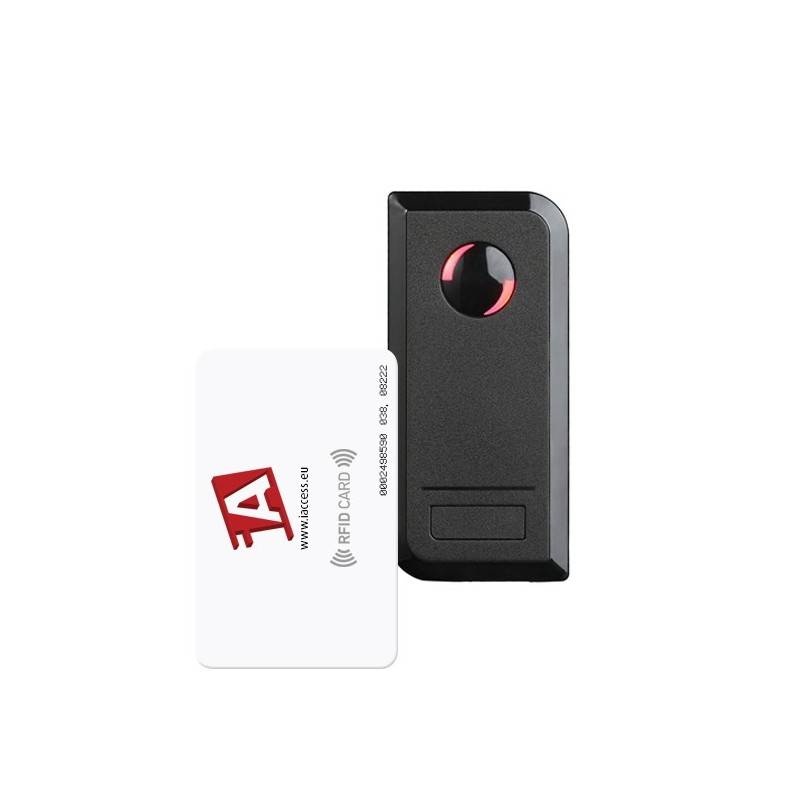

Access Control iAccess MX

Shipping: Express Courier

MX iAccess is an access control terminal, with a compact and modern design, convenient for any structure and installable in a very short time. Thanks to its particular conformation, it is also suitable for outdoor use (protection degree IP66).

It allows the automatic opening of the entrance door simply by bringing the RFID transponders (card or keyring) closer to the device.
It also has Wiegand communication which allows to be used as an auxiliary Rfid card reader connected to devices with Wiegand input.

Does Not have any software and it does Not memorize the passage times of the users.

Main features

RFID card reader or keychain
Register up to 1000 users
Output for connection and door opener
Integrated Wiegand 26 communication
Dimensions 103x48x20 AxWxD mm
Power supply : DC12V/24V
Working Temperature: -40 to 60°C

Power supply 12Vcc Optional

Data sheet

User recognition time	less than 0,5 seconds
User Recognition	With RFID Badge
Integrated Web Server	Si
Protection	For Outdoors
User Management	None
Communication	Wiegand 26
Display	No
Voice Synthesis	No
Download Data	No
Number of registered users	2000
Number of recordable passes	50000
Buffer battery for data storage	No
Automatic change of entries / exits	Si
Automatic change of day / legal time	Si
Time Zone function	Si
Siren Start / End of Worktime	Si
Work Code function	Si
Power Supply 220 V	DC12V
Power supply	Da 12V OPZIONALE
Operating environment	Indoor / Outdoor
Dimensions	50x124x34,5 mm. (LxAxP)
Warranty	2 years
