Door Opener Module SC-022
In stock
tax excl.
75,00€tax excl.

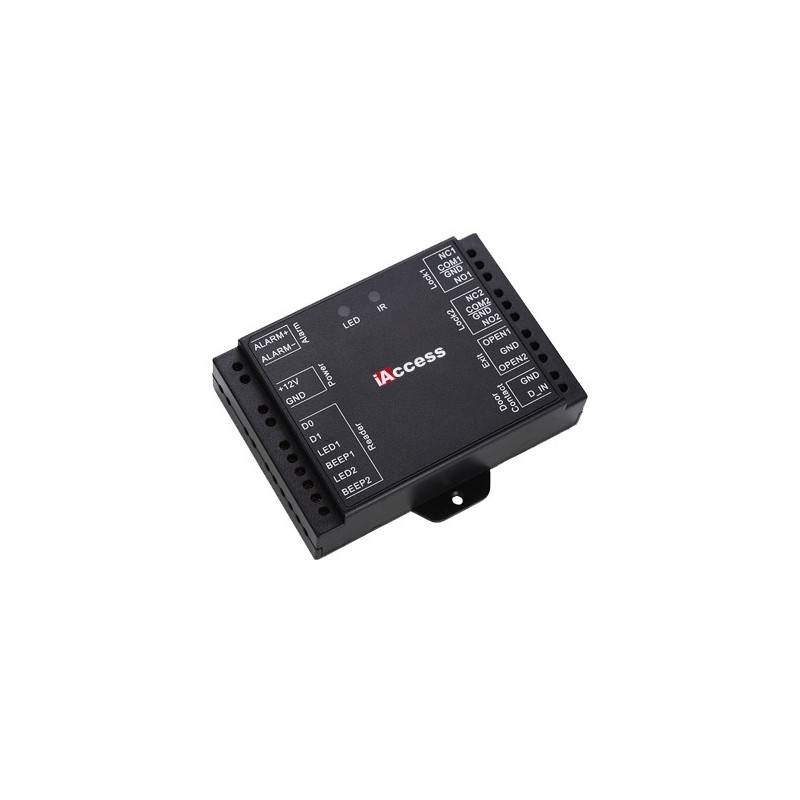

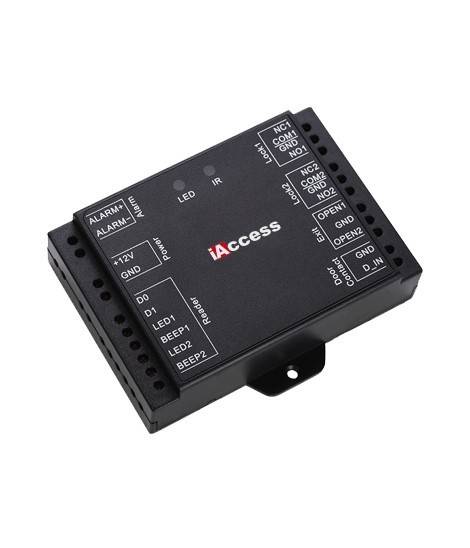

iAccess Security Board SC-022 is a security module that can be interfaced with RFID card readers, keyboards and fingerprint readers with Wiegand out 26-37 bit output. Its purpose is to secure access to your rooms by protecting the locks from any tampering from the outside. Through the two integrated relays it is possible to manage access to two distinct zones separately and independently. Configuration is very simple using the supplied remote control.
ESSENTIAL SPECIFICATIONS
- DOUBLE Integrated door release relay already powered 12V (1∼99 sec. 2A max).
- Capacity up to 2100 users (2000 for zone 1, 100 for zone 2).
- Protects the electric lock from external tampering.
- Compatible with Wiegand out 26˜37 bit devices.
- Operational in environments with temperatures from -40 ° to 60 ° C and humidity 0-90%.
- Dimensions: 100x26x86 mm. (WxDxH).
- 12V DC power supply (power supply not included).
